P0016 Ford F150 GuideMechanic.Com The P0016 code is a diagnostic trouble code (DTC) that indicates a problem with the camshaft position sensor or the crankshaft position sensor.
The camshaft and crankshaft sensors are two critical components that work together to ensure that the engine is running smoothly and efficiently.
The P0016 code is often associated with a variety of symptoms, including rough idling, poor acceleration, and a decrease in fuel efficiency.
There are several potential causes of this code, including a faulty sensor, a malfunctioning timing belt, or a problem with the engine’s internal components.
See Also: Ford F150 Check Engine Light
To diagnose and fix the problem, the vehicle will need to be taken to a mechanic who can perform a thorough inspection and troubleshooting process.
The mechanic will use specialized tools and equipment to test the sensors and other components and determine the root cause of the issue.
Overall, if you suspect that your vehicle is experiencing symptoms associated with the P0016 code, it’s essential to have it inspected and repaired as soon as possible to prevent further damage and potential safety hazards.
Defining The P0016 Code In Ford F150
The P0016 code is a common trouble code that can appear on a Ford F150 vehicle. This code indicates that there is an issue with the camshaft and crankshaft position sensors being out of synchronization.
The camshaft and crankshaft position sensors play an important role in engine performance, helping to ensure that the engine is running smoothly and efficiently.
When they become out of sync, the engine’s timing is thrown off, leading to a wide range of potential problems.
There are a number of potential causes of the P0016 code in a Ford F150. Some of the most common include issues with the sensors themselves, such as damage or wear and tear, as well as issues with the wiring or electrical connections related to the sensors.
See Also: 2013 Ford Focus Transmission Fluid
Other potential causes may include problems with the engine’s timing chain or belt, issues with mechanical components such as the camshaft or crankshaft, or problems with the engine control module.
If you are experiencing the P0016 code on your Ford F150, it is important to take it seriously and address the issue promptly.
Ignoring the problem can lead to further damage to the engine and potentially more costly repairs down the road.
A qualified mechanic can help diagnose the issue and recommend the appropriate repairs to get your vehicle back on the road in good working condition.
-
Symptoms Of The P0016 Code
The P0016 code is an OBD-II trouble code that indicates a problem with the timing or synchronization of the camshaft and crankshaft in the engine. This code is usually accompanied by a Check Engine Light on the dashboard.
Symptoms of the P0016 code include rough idling, stalling, and poor acceleration. In some cases, the engine may not start at all. Other symptoms may include decreased fuel efficiency, engine misfires, and reduced power output.
If you experience any of these symptoms or receive the P0016 code, it is important to have your vehicle checked by a certified mechanic or technician to diagnose and repair the problem.
-
Reasons For The Occurrence Of The P0016 Code
The P0016 code is a common OBD-II diagnostic trouble code that indicates an issue related to the crankshaft or camshaft position sensor.
There are several reasons why this code may occur, including a faulty sensor, a damaged wiring harness, or an issue with the timing chain or belt.
One of the most common causes of the P0016 code is a faulty sensor. The camshaft and crankshaft position sensors are critical components of a vehicle’s engine management system, providing important information about the engine’s timing and position.
See Also: Ford F150 Backup Camera
If either of these sensors fails or malfunctions, it can cause the P0016 code to appear.Another reason for this code is a damaged wiring harness. The wiring harness is responsible for connecting the sensors to the engine control module (ECM).
Over time, the wiring harness can become damaged due to environmental factors such as heat and vibration, or from exposure to oil and other engine fluids.Finally, issues with the timing chain or belt can also cause the P0016 code to appear.
These components play a critical role in ensuring that the engine’s valves and pistons operate in sync, and any issues with the timing chain or belt can result in incorrect engine timing, leading to issues such as misfires and poor engine performance.
In summary, the P0016 code can appear due to various reasons, including a malfunctioning sensor, a damaged wiring harness, or issues with the timing chain or belt.
If you experience this code, it’s important to have your vehicle diagnosed by a qualified mechanic to identify and repair any underlying issues.
Diagnosis Of P0016 In Ford F150
One common diagnostic trouble code (DTC) that can occur in a Ford F150 is P0016, which indicates that there is an issue with the camshaft position sensor or the crankshaft position sensor.
This code is related to the correlation between the two sensors, and it may display as “CKP-CMP Correlation” on a diagnostic tool.
To diagnose this issue, a technician would typically perform a series of tests, including checking the wiring and connections between the sensors and the engine control module, and testing the sensors themselves to ensure they are functioning properly.
They may also check for any other related codes or symptoms, such as rough engine idle, misfires, or stalling.
Once the issue has been identified, the technician can replace the faulty part or make any necessary repairs to resolve the issue and clear the DTC from the computer’s memory.
It is important to fix any issues with the camshaft or crankshaft position sensors promptly, as they play an important role in engine performance and can lead to more serious problems if left unresolved.
-
Stepwise Diagnosis Of The P0016 Code In Ford F150
The P0016 code in a Ford F150 refers to a problem with the camshaft position sensor. The camshaft position sensor is responsible for monitoring the position of the camshaft in relation to the crankshaft, and communicating this information to the engine control module.
A fault in the sensor can cause the engine to run poorly, or not start at all.To diagnose the P0016 code, it is important to follow a stepwise approach.
First, check the wiring and connectors leading to the camshaft position sensor for any signs of damage or corrosion.
See Also: 2008 Ford Escape Ignition Switch

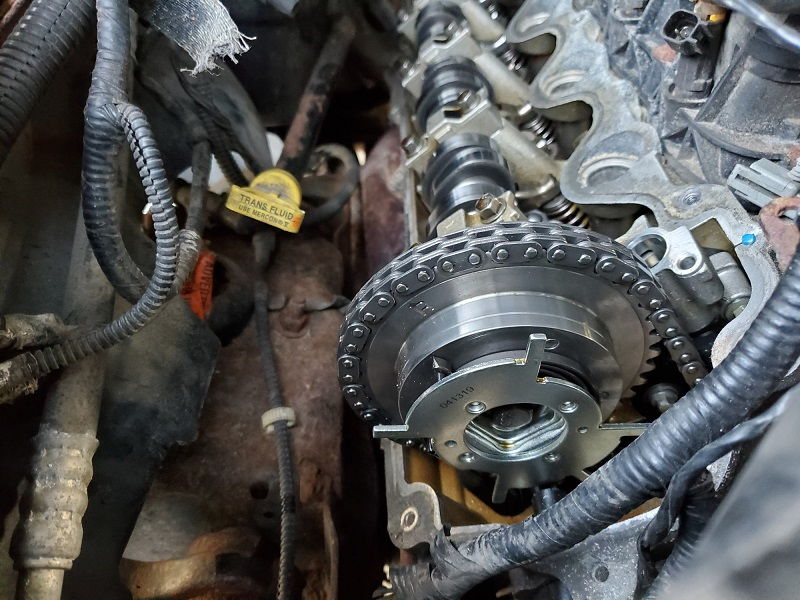

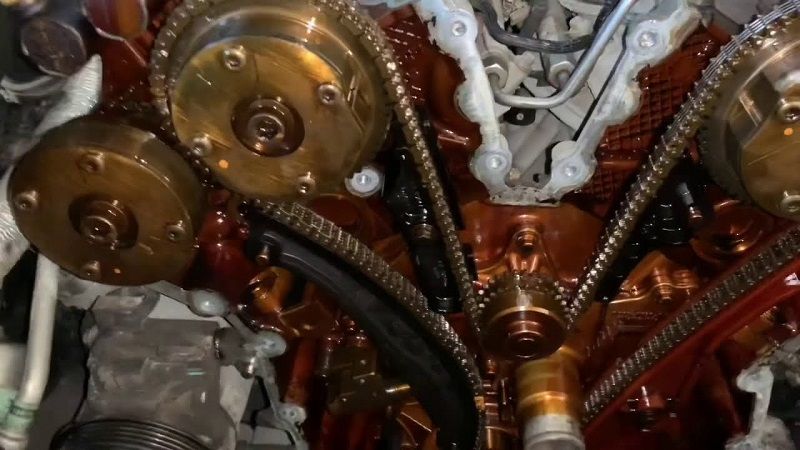

Next, check the sensor itself for any signs of physical damage or wear.If the wiring and sensor look good, next check the timing chain for wear or damage. A slack or stretched timing chain can cause a camshaft to be out of position, triggering the P0016 code.
Additionally, check the engine oil level and quality, as low oil pressure can cause the camshaft position sensor to malfunction.
Finally, if none of the above steps have resolved the issue, it may be necessary to replace the camshaft position sensor or the engine control module itself.
It is recommended to have a qualified mechanic perform these more advanced diagnostic and repair steps.
By following this stepwise approach to diagnosing the P0016 code in a Ford F150, you can help ensure a successful repair and get your vehicle running smoothly once again.
-
Equipment Needed To Diagnose The P0016 Code
When diagnosing the P0016 code in a vehicle, certain equipment is typically needed to accurately identify the root cause of the problem.
One essential tool is an OBD-II scanner, which is used to read diagnostic trouble codes stored in the vehicle’s computer system.
Additionally, a digital multimeter may be required to test various electrical components, such as the camshaft and crankshaft position sensors. Oscilloscopes can also be used to analyze waveforms and voltages in the engine’s electrical system.
Specialized automotive diagnostic software may also be necessary, along with a set of hand tools to access and remove engine components as needed. All of these pieces of equipment play a crucial role in diagnosing and repairing the P0016 code in a vehicle.
-
Examining The Components Responsible For The P0016 Code
The P0016 code is a common engine error code that indicates there is an issue with the timing of the engine.
This code typically appears in vehicles with variable valve timing (VVT) systems, as it relates to the synchronization of the crankshaft and camshaft positions.
When the P0016 code appears, it means that the camshaft and crankshaft positions are not in sync, which can cause issues with engine performance and emissions.
To diagnose and repair the P0016 code, it is important to examine the components responsible for regulating the synchronization of the camshaft and crankshaft positions.
This typically involves inspecting the VVT solenoid and oil control valve, as well as checking for any damage to the timing belt or chain.
In addition to examining these components, it may also be necessary to perform a computer diagnostic scan to identify any other issues that could be contributing to the P0016 code.
Once the root cause of the issue has been identified, repairs can be made to restore proper engine timing and performance.
Overall, the P0016 code is a clear indication that there is an issue with the engine’s timing, and it is important to address this issue promptly to avoid further damage to the engine and enhance performance and efficiency.
Issue Resolution
The P0016 code on a Ford F150 refers to a camshaft position – crankshaft position correlation error. This means that there is an issue with how the two positions are syncing up, which can cause problems with the engine’s performance.
To resolve this issue, the first step is to check the engine oil level and quality, as low or poor quality oil can cause issues with the camshaft position actuator.
If this does not resolve the issue, the next step is to check the camshaft position sensor and the reluctor wheel on the camshaft.
It may be necessary to replace these components if they are found to be faulty. Additional potential causes for the P0016 code include issues with the variable valve timing solenoid, wiring issues, or problems with the engine control module (ECM).
A mechanic with experience working on Ford F150s should be able to diagnose and resolve the issue, often by using specialized diagnostic tools that can provide further insight into what is causing the error code.
