Understanding P0064 Code: HO2S Heater Control Circuit High in Bank 2 Sensor 3 GuideMechanic.Com Modern vehicles are equipped with sophisticated engine management systems that rely on various sensors to ensure optimal performance and emission control.
Among these sensors, the oxygen sensor (O2 sensor) plays a crucial role in monitoring the oxygen levels in exhaust gases. However, when issues arise with the heater control circuit associated with this sensor, it can lead to performance problems and increased emissions.
This article explores the specifics of the P0064 error code, focusing on the HO2S Heater Control Circuit High in Bank 2 Sensor 3, its causes, and potential solutions.
See Also: P0062 Code: HO2S Heater Control Circuit (Bank 2 Sensor 3)
Understanding P0064 Error Code:
P0064 is a diagnostic trouble code (DTC) that indicates a problem with the heater control circuit of the oxygen sensor located in Bank 2 Sensor 3.
Bank 2 refers to the side of the engine that does not contain cylinder 1, while Sensor 3 indicates the third oxygen sensor in the exhaust system, counting from the engine towards the tailpipe.
The heater control circuit in the oxygen sensor is responsible for regulating the temperature of the sensor element. This heating process is crucial, especially during cold starts, as it allows the sensor to reach operating temperature quickly and provide accurate readings to the engine control module (ECM).
A malfunction in this circuit, resulting in high voltage, can lead to inaccurate sensor readings and subsequent performance issues.
Potential Causes of P0064 Error:
Several factors can contribute to the triggering of the P0064 error code. Some of the common causes include:

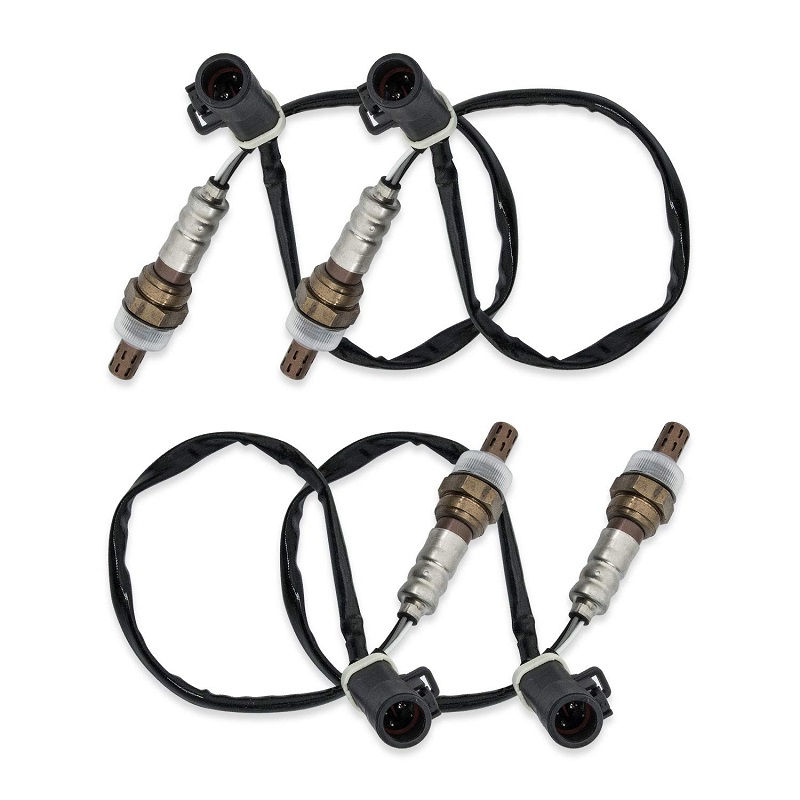

Faulty Oxygen Sensor:
Over time, oxygen sensors can degrade or fail due to exposure to high temperatures and contaminants in the exhaust gases. A malfunctioning sensor may not properly regulate the temperature of the heater element, leading to high voltage in the heater control circuit and triggering the P0064 error code.
Wiring Issues:
Damage to the wiring harness or connectors associated with the oxygen sensor heater control circuit can disrupt the flow of electrical current, resulting in high voltage. Frayed wires, corrosion, or loose connections can all contribute to this problem.
Short to Power:
A short circuit to power in the oxygen sensor heater control circuit can cause voltage to rise above normal levels, triggering the P0064 error code. This can occur due to a damaged wire insulation or a faulty component in the circuit.
ECM Failure:
In rare cases, a malfunctioning engine control module (ECM) may send incorrect signals to the oxygen sensor heater control circuit, causing voltage to rise above normal levels and triggering the P0064 error code.
P0064 Code: HO2S Heater Control Circuit High (Bank 2 Sensor 3)
Diagnosing and Resolving Error Code:
Diagnosing the underlying cause of the P0064 error code typically requires a systematic approach and specialized diagnostic tools. Here are the steps that technicians may take to address this issue:
Visual Inspection:
The first step is to visually inspect the oxygen sensor and its associated wiring for any signs of damage, corrosion, or loose connections. Any issues found during this inspection should be addressed promptly.
Check Heater Control Circuit Voltage:
Using a digital multimeter, technicians can test the voltage in the oxygen sensor heater control circuit to ensure that it is within the manufacturer’s specified range. High voltage readings may indicate a problem with the sensor, wiring, or ECM.
Inspect for Short Circuits:
Technicians should carefully inspect the wiring harness for any signs of short circuits to power. This can be done using a multimeter or a test light to check for continuity between the circuit and power source.
Test ECM Functionality:
In cases where other potential causes have been ruled out, technicians may need to test the functionality of the engine control module (ECM) to ensure that it is sending the correct signals to the oxygen sensor heater control circuit.
Replace Faulty Components:
Depending on the findings of the diagnostic tests, technicians may need to replace the oxygen sensor, repair damaged wiring, or replace faulty components in the heater control circuit to resolve the P0064 error code.
Conclusion:
The P0064 error code relating to HO2S Heater Control Circuit High in Bank 2 Sensor 3 signifies a malfunction in the heater control circuit of the oxygen sensor.
This issue can lead to high voltage and inaccurate sensor readings, affecting engine performance and emissions. Prompt diagnosis and repair are essential to ensure the proper functioning of the oxygen sensor and maintain optimal engine performance.
By following a systematic diagnostic process and addressing any underlying issues, technicians can effectively resolve the P0064 error code and restore the vehicle’s performance and efficiency.
