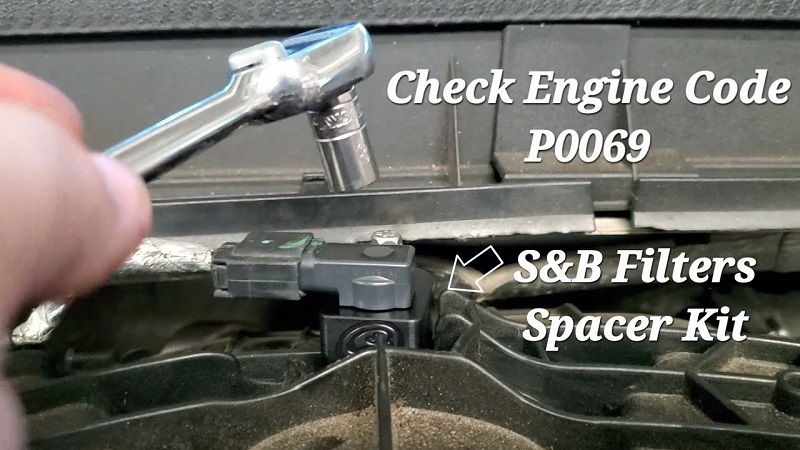

Deciphering P0069 Code: Understanding Manifold Absolute Pressure – Barometric Pressure Correlation GuideMechanic.Com In the intricate landscape of modern vehicle diagnostics, error codes serve as invaluable clues in identifying potential issues within the engine management system.
One such code, P0069, highlights a correlation problem between the Manifold Absolute Pressure (MAP) sensor and the Barometric Pressure (BARO) sensor.
This article aims to delve into the intricacies of the P0069 error code, exploring its significance, underlying causes, and potential resolutions.
See Also: P0067 Code: Air Assisted Injector Control Circuit High
Understanding P0069 Error Code:
P0069 is a diagnostic trouble code (DTC) that indicates a correlation problem between the readings of the Manifold Absolute Pressure (MAP) sensor and the Barometric Pressure (BARO) sensor.
The MAP sensor measures the pressure within the intake manifold, while the BARO sensor measures the atmospheric pressure outside the engine. These sensors play crucial roles in determining the engine’s air/fuel mixture and optimizing performance.
When the engine control module (ECM) detects a disparity between the readings of these sensors, it triggers the P0069 error code.
This discrepancy suggests a potential issue within the engine’s air intake system, which can lead to inefficient fuel combustion and reduced engine performance.
Potential Causes of Error Code:
Several factors can contribute to the triggering of the P0069 error code. Some of the common causes include:

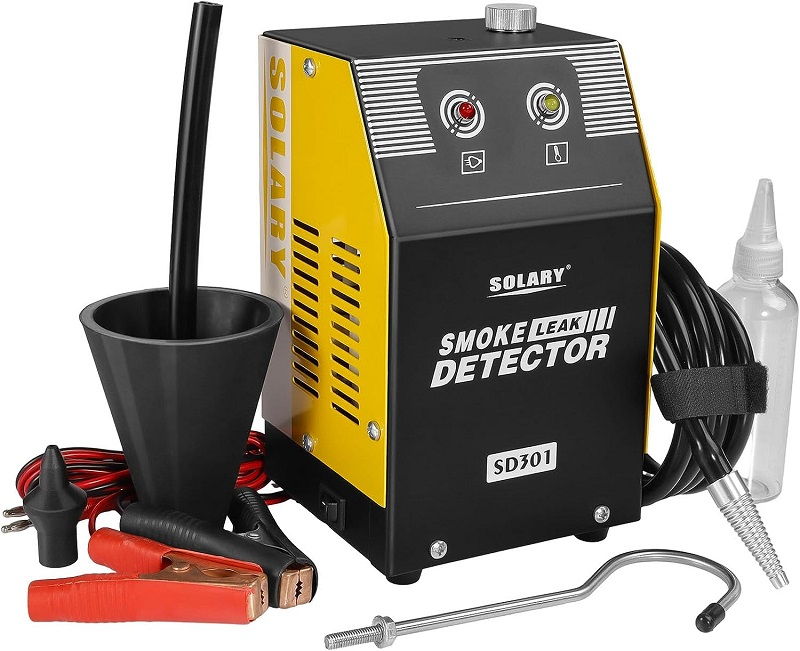

Check out this Solary Automotive Smoke Machine Leak Detector – 12V DC EVAP Vacuum Diagnostic Tester for Pipe System
Faulty Sensors:
Over time, MAP and BARO sensors can degrade or malfunction due to exposure to heat, vibration, or contaminants. A defective sensor may provide inaccurate pressure readings, leading to a correlation problem between the MAP and BARO sensors.
Vacuum Leaks:
Vacuum leaks in the intake manifold or associated vacuum lines can affect the pressure readings measured by the MAP sensor, leading to a discrepancy between the MAP and BARO sensor readings.
Faulty Wiring or Connectors:
Damage to the wiring harness or connectors connected to the MAP or BARO sensors can result in intermittent electrical connections or signal interference, causing the ECM to receive inconsistent sensor data.
Atmospheric Conditions:
Drastic changes in atmospheric conditions, such as altitude changes or extreme weather conditions, can affect the BARO sensor readings and lead to a correlation issue with the MAP sensor.
ECM Software Issues:
Software glitches or calibration errors within the engine control module (ECM) can also cause a disparity between the MAP and BARO sensor readings, triggering the P0069 error code.

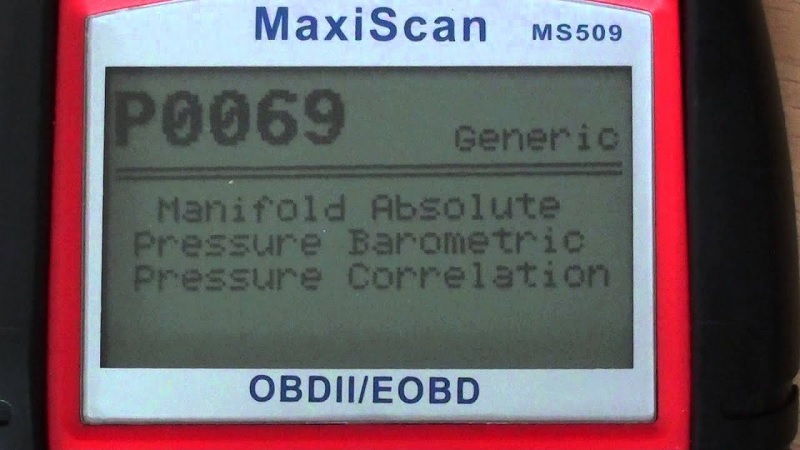

P0069 Code: Manifold Absolute Pressure – Barometric Pressure Correlation
Diagnosing and Resolving Error Code:
Diagnosing the underlying cause of the P0069 error code typically requires a systematic approach and specialized diagnostic tools. Here are the steps that technicians may take to address this issue:
Scan for Additional Codes:
Before proceeding with diagnostics, technicians should use a diagnostic scanner to retrieve additional trouble codes present in the ECM. These codes may provide valuable clues about related issues within the engine management system.
Visual Inspection:
The first step is to visually inspect the MAP and BARO sensors, as well as their associated wiring harnesses and connectors, for any signs of damage, corrosion, or loose connections. Any issues found during this inspection should be addressed promptly.
Test Sensor Readings:
Using a diagnostic scanner or multimeter, technicians can monitor the readings of the MAP and BARO sensors while the engine is running. Any significant disparities or erratic fluctuations in sensor readings may indicate a problem that needs further investigation.
Check for Vacuum Leaks:
Technicians should perform a smoke test or use a handheld vacuum pump to check for leaks in the intake manifold or vacuum lines. Any leaks found should be repaired to restore proper pressure readings and sensor accuracy.
Test Atmospheric Conditions:
If the discrepancy between the MAP and BARO sensor readings persists, technicians may need to verify the atmospheric conditions at the vehicle’s location. Comparing the sensor readings to known standard atmospheric pressure values can help identify any abnormalities.
Update ECM Software:
If no other issues are found, technicians may consider updating the engine control module (ECM) software to the latest version. This can help resolve any software-related glitches or calibration errors that may be causing the correlation problem between the MAP and BARO sensors.
Conclusion:
See Also: P0068 Code: MAP/MAF – Throttle Position Correlation
The P0069 error code relating to Manifold Absolute Pressure – Barometric Pressure Correlation indicates a discrepancy between the readings of the MAP sensor and the BARO sensor.
This disparity can result from various factors, including faulty sensors, vacuum leaks, wiring issues, atmospheric conditions, or ECM software issues.
Prompt diagnosis and repair are essential to ensure the proper functioning of the engine’s air intake system and maintain optimal engine performance.
By following a systematic diagnostic process and addressing any underlying issues, technicians can effectively resolve the P0069 error code and restore the vehicle’s performance and efficiency.
