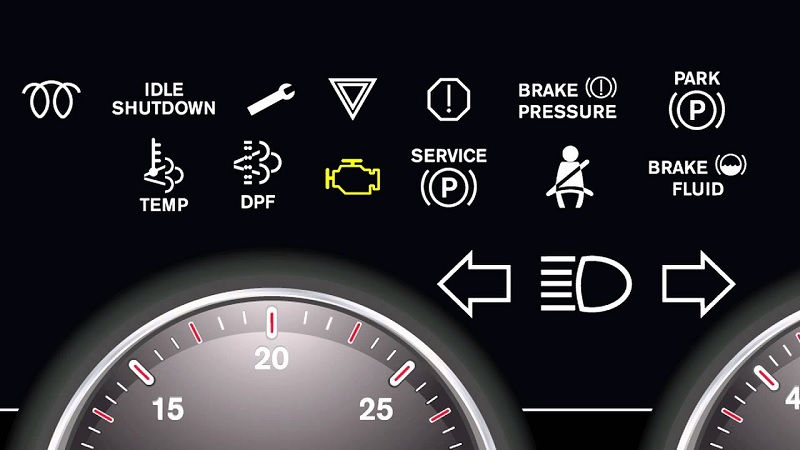

Truck Dashboard Symbols and Meanings: Engine Warning Light
The engine warning light is one of the most critical symbols on your truck’s dashboard. When this light illuminates, it indicates that there is a problem with your truck’s engine.
The causes of the engine warning light can vary, ranging from minor issues to more serious problems that require immediate attention.
Understanding the different meanings behind this warning light is essential for addressing the issue promptly and preventing further damage to your engine.
Possible Causes and Actions:
There are several potential causes for the engine warning light to illuminate. One common reason is a loose or faulty gas cap.
If the cap is not properly tightened, it can lead to a drop in fuel tank pressure, triggering the warning light. In this case, simply tightening or replacing the gas cap should resolve the issue.
Another possible cause is a malfunctioning oxygen sensor. The oxygen sensor monitors the amount of unburned oxygen in the exhaust system and helps regulate fuel injection.
When the oxygen sensor fails, it can lead to reduced fuel efficiency and increased emissions, triggering the engine warning light. Replacing the faulty oxygen sensor is necessary to rectify the problem.
A more severe issue that can trigger the engine warning light is a misfiring engine or a problem with the ignition system.
This can result from a variety of factors, such as a faulty spark plug, a malfunctioning ignition coil, or a clogged fuel injector.
Ignoring these issues can lead to further engine damage, decreased performance, and increased fuel consumption.
It is crucial to have your truck inspected by a qualified mechanic to diagnose and address the underlying cause.
Other potential causes of the engine warning light include a malfunctioning catalytic converter, a faulty mass airflow sensor, or a problem with the engine’s timing.
Each of these issues requires professional attention and should not be ignored, as they can lead to more significant problems if left unresolved.
Truck Dashboard Symbols and Meanings: Oil Pressure Warning Light
The oil pressure warning light indicates that the oil pressure in your truck’s engine is too low. Proper oil pressure is essential for lubricating the engine’s moving parts and preventing friction and overheating.
When this warning light illuminates, it is crucial to take immediate action to prevent engine damage or failure.
Possible Causes and Actions:
There are several potential causes for low oil pressure, each requiring a specific course of action. One common cause is a low oil level. Insufficient oil can result from leaks, burning oil, or neglecting regular oil changes.
See Also: Check Engine Light After Oil Change
In this case, checking and topping up the oil to the recommended level can resolve the issue. However, it is essential to address the underlying cause of the oil loss to prevent it from recurring.
Another possible cause of low oil pressure is a malfunctioning oil pump. The oil pump is responsible for circulating the oil throughout the engine, maintaining the required pressure.
If the pump fails or becomes clogged, it can lead to reduced oil pressure. In such cases, replacing the oil pump is necessary to restore proper lubrication to the engine.
A faulty oil pressure sensor can also trigger the warning light. The sensor is responsible for monitoring the oil pressure and sending signals to the dashboard.
If the sensor malfunctions, it can provide inaccurate readings, causing the warning light to illuminate. Replacing the faulty sensor should resolve the issue.
In some cases, low oil pressure can be a result of a more severe problem, such as a worn-out engine or a blocked oil passage.
These issues require immediate attention from a qualified mechanic, as they can lead to irreversible engine damage if left unaddressed.
Truck Dashboard Symbols and MeaningsTruck Dashboard Symbols and Meanings: Battery Warning Light
The battery warning light indicates a problem with your truck’s electrical system or charging system. When this light illuminates, it is essential to take action to prevent a complete battery failure and potential breakdown.
Possible Causes and Actions:
One common cause of the battery warning light is a faulty alternator. The alternator is responsible for charging the battery while the engine is running.
If the alternator fails, it can result in a drained battery and cause the warning light to illuminate. In this case, having the alternator replaced is necessary to restore proper charging to the battery.
Another possible cause is a loose or damaged drive belt. The drive belt connects the engine’s crankshaft to the alternator, enabling it to generate electricity.
If the belt is loose or damaged, it can slip or break, resulting in a loss of power generation and triggering the warning light. Inspecting the drive belt for proper tension and replacing it if necessary should resolve the issue.
A weak or faulty battery can also cause the warning light to illuminate. Over time, batteries naturally degrade and may lose their ability to hold a charge. If the battery is old or showing signs of weakness, replacing it is necessary to prevent unexpected breakdowns.
In some cases, the battery warning light may indicate a problem with the wiring or connections in the electrical system.
Loose or corroded connections can disrupt the flow of electricity, causing the warning light to illuminate. Ensuring all connections are secure and free of corrosion can help resolve the issue.
Truck Dashboard Symbols and Meanings: Brake System Warning Light
The brake system warning light indicates a problem with your truck’s braking system. Your brakes are a critical safety component, and any issues should be addressed promptly to ensure your safety on the road.
Possible Causes and Actions:
One common cause of the brake system warning light is low brake fluid levels. The brake fluid is responsible for transmitting the force from the brake pedal to the brake components, enabling effective braking.
If the fluid level drops below the recommended level, it can result from a leak or worn brake pads. Checking the brake fluid level and topping it up if necessary can resolve the issue temporarily.
However, it is crucial to have the brake system inspected by a professional to identify and rectify the underlying cause of the fluid loss.
Another potential cause is a malfunctioning brake master cylinder. The master cylinder is responsible for generating hydraulic pressure in the brake system, allowing for proper braking.
If the master cylinder fails or becomes worn, it can lead to a loss of braking power and trigger the warning light. Replacing the faulty master cylinder is necessary to restore the brake system’s functionality.
Worn brake pads or shoes can also cause the brake system warning light to illuminate. As the brake pads wear down, the fluid level in the master cylinder drops, triggering the warning light. In this case, replacing the worn brake pads or shoes is necessary to ensure proper braking performance.
Other potential causes of the brake system warning light include a faulty brake booster, a malfunctioning ABS module, or a problem with the brake lines.
See Also: Car Swerving Light
These issues require professional attention and should not be ignored, as they can compromise your ability to stop the vehicle effectively.
Truck Dashboard Symbols and Meanings: Tire Pressure Monitoring System (TPMS) Warning Light
The TPMS warning light indicates a problem with the tire pressure in your truck. Properly inflated tires are essential for maintaining vehicle stability, fuel efficiency, and tire longevity.
Monitoring and addressing tire pressure issues promptly can help prevent accidents and extend the lifespan of your tires.
Possible Causes and Actions:
One common cause of the TPMS warning light is low tire pressure. Fluctuations in temperature, punctures, or leaks can result in gradual pressure loss.
Checking the tire pressure using a pressure gauge and inflating the tires to the recommended levels can resolve the issue.
It is also essential to inspect the tires for any signs of damage or leaks and have any necessary repairs or replacements performed.
In some cases, the TPMS warning light may indicate a faulty tire pressure sensor. The sensor is responsible for monitoring the tire pressure and transmitting the information to the dashboard.
If a sensor malfunctions or becomes damaged, it can provide inaccurate readings, triggering the warning light. Replacing the faulty sensor should resolve the issue.
Another possible cause is an issue with the TPMS control module. The control module receives the signals from the tire pressure sensors and processes the information to activate the warning light.
If the control module malfunctions, it may provide false readings and illuminate the warning light. In such cases, having the control module inspected and replaced if necessary is necessary.
It is important to note that the TPMS warning light may also illuminate if the spare tire’s pressure is low or if the spare tire does not have a tire pressure sensor.
Checking the spare tire and ensuring it is properly inflated can help prevent the warning light from appearing unnecessarily.
Truck Dashboard Symbols and Meanings: Coolant Temperature Warning Light
The coolant temperature warning light indicates that the temperature of your truck’s engine coolant is too high. Overheating can cause severe damage to the engine,leading to costly repairs and potential breakdowns.
Understanding the meaning behind the coolant temperature warning light is crucial for taking immediate action and preventing further damage to your truck’s engine.
Possible Causes and Actions:
One common cause of engine overheating is a low coolant level. Coolant, also known as antifreeze, plays a vital role in regulating the engine temperature and preventing it from overheating.
If the coolant level is low, it can result from a leak or neglecting regular maintenance. In this case, adding coolant to the recommended level can temporarily address the issue. However, it is essential to locate and repair any coolant leaks to prevent further coolant loss.
A malfunctioning thermostat can also cause the coolant temperature warning light to illuminate. The thermostat regulates the flow of coolant through the engine, ensuring it reaches the optimal operating temperature.
If the thermostat becomes stuck closed, it can restrict the flow of coolant, leading to overheating. Replacing the faulty thermostat is necessary to restore proper engine temperature regulation.
Another potential cause of engine overheating is a malfunctioning radiator fan. The fan is responsible for cooling the radiator and dissipating heat from the coolant.
If the fan fails to operate or operates at a reduced speed, it can result in inadequate cooling and trigger the warning light. Checking the fan’s functionality and replacing it if necessary can resolve the issue.
Other possible causes of engine overheating include a blocked or clogged radiator, a malfunctioning water pump, or a faulty temperature sensor. These issues require professional attention, as they can lead to severe engine damage if left unaddressed.
Truck Dashboard Symbols and Meanings: Transmission Temperature Warning Light
The transmission temperature warning light indicates that the temperature of your truck’s transmission fluid is too high. Problems with the transmission can lead to costly repairs and compromised driving performance.
Understanding the meaning behind the transmission temperature warning light is essential for taking appropriate action and preserving the lifespan of your truck’s transmission.
Possible Causes and Actions:
One common cause of high transmission temperatures is a low transmission fluid level. The transmission fluid serves as a lubricant, coolant, and hydraulic fluid for the transmission system. If the fluid level is low, it can result from leaks or neglecting regular maintenance.
See Also: Service Engine Soon
Checking the transmission fluid level and topping it up to the recommended level can temporarily address the issue. However, it is crucial to inspect the transmission system for any leaks and repair them to prevent further fluid loss.
A malfunctioning transmission cooler can also cause the transmission temperature warning light to illuminate. The transmission cooler is responsible for cooling the transmission fluid, preventing it from overheating.
If the cooler becomes clogged or damaged, it can restrict the flow of coolant and lead to elevated temperatures. Inspecting the cooler for any obstructions and replacing it if necessary can resolve the issue.
Driving conditions, such as towing heavy loads or continuous stop-and-go traffic, can also contribute to increased transmission temperatures.
In such cases, it is important to be mindful of the transmission’s operating temperature and take necessary breaks to allow it to cool down.
Other potential causes of high transmission temperatures include a malfunctioning transmission pump, a blocked transmission filter, or a faulty temperature sensor.
These issues require professional attention, as they can lead to further transmission damage if not addressed promptly.
Truck Dashboard Symbols and Meanings: Airbag Warning Light
The airbag warning light is a crucial safety feature that should never be disregarded. When this light illuminates, it indicates a problem with your truck’s airbag system.
The airbags are designed to provide additional protection in the event of a collision, and any issues with the system should be addressed promptly to ensure your safety on the road.
Possible Causes and Actions:
One common cause of the airbag warning light is a faulty airbag sensor. The sensors are responsible for detecting sudden deceleration or impact, triggering the deployment of the airbags.
If a sensor malfunctions or becomes damaged, it can provide inaccurate readings and cause the warning light to illuminate. In such cases, having the faulty sensor replaced is necessary to restore proper airbag functionality.
A problem with the airbag module can also trigger the warning light. The module is responsible for controlling and monitoring the airbag system.
If the module malfunctions, it may not activate the airbags in the event of a collision, compromising your safety.
Replacing the faulty module or performing necessary repairs is necessary to ensure the proper functioning of the airbag system.
Other potential causes of the airbag warning light include a disconnected or damaged airbag wiring harness, a faulty clock spring, or a problem with the airbag inflator.
These issues require professional attention, as they involve intricate components of the airbag system and should not be attempted to fix without the necessary expertise.
Truck Dashboard Symbols and Meanings: ABS Warning Light
The ABS warning light plays a vital role in ensuring optimal braking performance. The ABS (Anti-lock Braking System) prevents the wheels from locking up during sudden braking, allowing for better control and stability.
When this warning light illuminates, it indicates a problem with the ABS system, and addressing the issue promptly is essential for maintaining your truck’s braking efficiency.
Possible Causes and Actions:
One common cause of the ABS warning light is a faulty wheel speed sensor. The wheel speed sensors are responsible for monitoring the rotational speed of each wheel.
If a sensor malfunctions or becomes damaged, it can provide inaccurate readings to the ABS system, triggering the warning light. In such cases, having the faulty sensor replaced is necessary to restore proper ABS functionality.
A problem with the ABS control module can also cause the warning light to illuminate. The control module receives information from the wheel speed sensors and activates the ABS system when necessary.
If the module malfunctions or becomes damaged, it may not operate the ABS system correctly, compromising your braking performance.
Replacing the faulty module or performing necessary repairs is necessary to ensure the proper functioning of the ABS system.
Issues with the ABS hydraulic unit or a malfunctioning ABS pump can also trigger the warning light. These components are responsible for modulating the brake pressure during ABS activation.
If they fail or become damaged, it can result in reduced braking efficiency and the illumination of the warning light. Inspecting these components and replacing any faulty parts is necessary to restore optimal ABS performance.
Truck Dashboard Symbols and Meanings: Fuel Level Warning Light
The fuel level warning light indicates that your truck’s fuel level is low, and refueling is necessary to avoid running out of fuel unexpectedly.
See Also: Mini Cooper Check Engine Light
Monitoring the fuel level and addressing low fuel warnings promptly is crucial for preventing breakdowns and ensuring uninterrupted driving.
Possible Causes and Actions:
The most common cause of the fuel level warning light is simply a low fuel level in the tank. When the fuel level drops below a certain threshold, the warning light illuminates to remind you to refuel.
In this case, finding a nearby gas station and refilling the tank to an appropriate level is necessary to prevent running out of fuel.
In some cases, the fuel level sensor may malfunction or become inaccurate, causing the warning light to illuminate even when the tank is not empty.
If you have recently refueled and the warning light remains on, it is advisable to have the fuel level sensor inspected and replaced if necessary.
It is important to note that the fuel level warning light may also illuminate if there is a problem with the fuel system, such as a clogged fuel filter or a malfunctioning fuel pump.
These issues require professional attention, as they can lead to fuel delivery problems and potential engine damage if not addressed promptly.
In conclusion, understanding the symbols on your truck’s dashboard is vital for maintaining the safety and functionality of your vehicle.
By familiarizing yourself with the meanings behind these symbols, you can promptly address any issues that arise and prevent further damage or accidents.
Whether you’re a truck owner, a professional driver, or simply intrigued by the world of trucks, this comprehensive guide serves as a valuable resource to navigate the complexities of truck dashboard symbols with confidence.
