What is short term fuel Trim Bank 2? – An In-Depth Guide GuideMechanic.Com Short-term fuel trim (STFT) is a critical parameter monitored by the engine control module (ECM) or powertrain control module (PCM) in modern vehicles. STFT plays a crucial role in maintaining the optimal air-fuel ratio for efficient combustion and engine performance.
In this comprehensive guide, we’ll delve into what short-term fuel trim is, its significance in engine operation, how it relates to Bank 2, common causes of issues, and troubleshooting methods.
What is short term fuel Trim Bank 2?
Short-term fuel trim refers to the adjustments made by the vehicle’s ECM or PCM to the air-fuel mixture in real-time based on feedback from the oxygen (O2) sensors.
See Also: P0139 Code: What Is The P0139 Code
The primary function of short-term fuel trim is to ensure that the air-fuel ratio entering the engine’s combustion chambers is within the desired range for efficient operation.
How Does Work?
The ECM or PCM continuously monitors the signals from the oxygen sensors located in the exhaust system. These sensors measure the oxygen content in the exhaust gases, providing feedback on whether the air-fuel mixture is too rich (excess fuel) or too lean (excess air).
Based on the feedback from the oxygen sensors, the ECM or PCM adjusts the duration of fuel injection pulses to achieve the ideal air-fuel ratio.
If the oxygen sensors detect a lean condition (too much oxygen), the ECM or PCM will increase the duration of fuel injection pulses to enrich the mixture.
Conversely, if a rich condition (too much fuel) is detected, the ECM or PCM will decrease the duration of fuel injection pulses to lean out the mixture.
What is Bank 2?

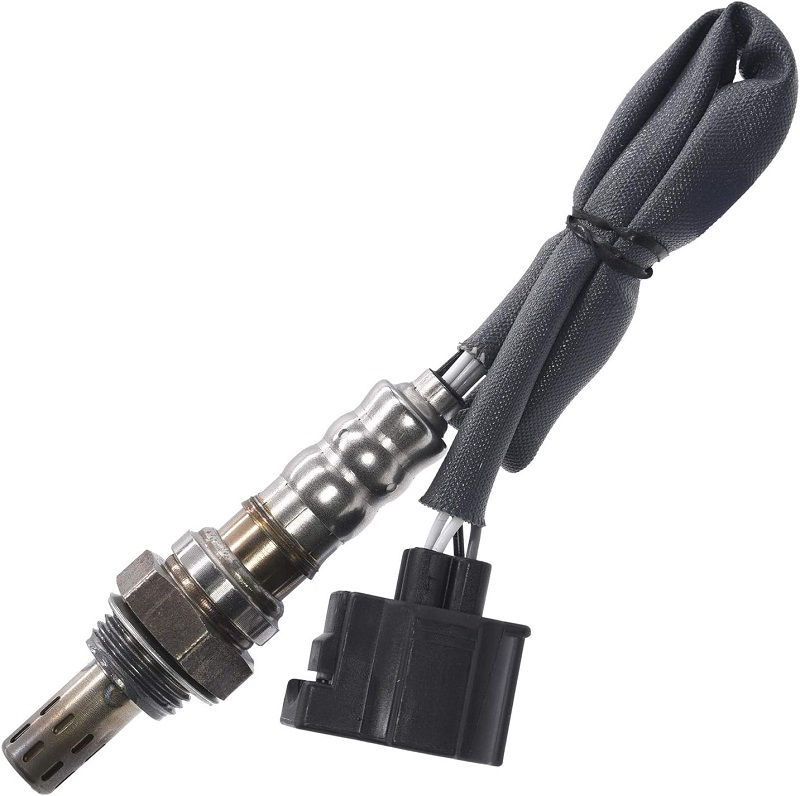

Check out this Walker Products 350-34039 Oxygen Sensor, Original Equipment Replacement O2 Sensor
In vehicles with V6, V8, or other multi-cylinder engines, the engine is divided into two banks—Bank 1 and Bank 2. Bank 1 typically refers to the side of the engine that contains Cylinder 1, while Bank 2 refers to the opposite side.
The designation of Bank 1 and Bank 2 may vary depending on the vehicle’s configuration, with Bank 2 usually being on the side opposite the cylinder numbering sequence.
Significance of Short-Term Fuel Trim Bank 2:
Short-term fuel trim Bank 2 specifically refers to the adjustments made to the air-fuel mixture on the cylinders located in Bank 2 of the engine.
Monitoring short-term fuel trim Bank 2 provides valuable insight into the fuel delivery and combustion efficiency of the cylinders on that side of the engine.
Common Causes of Short-Term Fuel Trim Bank 2 Issues:
Several factors can contribute to issues with short-term fuel trim Bank 2:
Vacuum Leaks:
Vacuum leaks in the intake system can lead to unmetered air entering the engine, causing a lean condition that the ECM or PCM compensates for by increasing fuel delivery.
Faulty Oxygen Sensor:
A malfunctioning oxygen sensor can provide inaccurate feedback to the ECM or PCM, resulting in improper adjustments to the air-fuel mixture.
Fuel Delivery Issues:
Problems with the fuel injectors, fuel pressure regulator, or fuel pump can affect fuel delivery to the cylinders, leading to deviations in the air-fuel ratio.
Exhaust System Leaks:
Leaks in the exhaust system upstream of the oxygen sensor can allow air to enter the exhaust stream, affecting the sensor’s readings and fuel trim adjustments.
Engine Mechanical Issues:
Issues such as a stuck open EGR (exhaust gas recirculation) valve, worn piston rings, or a faulty mass airflow sensor can impact engine performance and fuel trim.
Troubleshooting Short-Term Fuel Trim Bank 2 Issues:

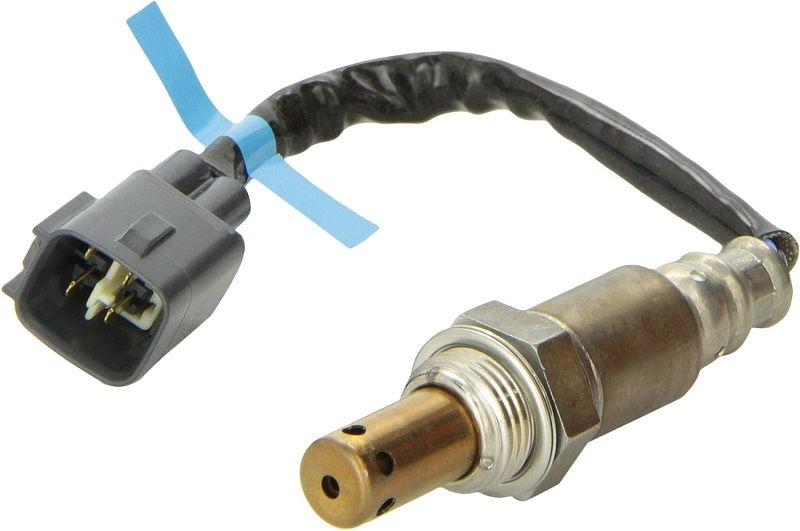

Check out this Denso 234-9051 Right-Bank Upstream with 4-Wire 8.5” Option Air Fuel Ratio Oxygen Sensor
Diagnosing and resolving issues with short-term fuel trim Bank 2 typically involves the following steps:
Scan for Trouble Codes:
See Also: Check Engine Light Came on While Driving
Use a diagnostic scanner to retrieve any stored trouble codes, including P0174 (System Too Lean Bank 2) or P0172 (System Too Rich Bank 2), which may indicate issues with short-term fuel trim Bank 2.
Inspect for Vacuum Leaks:
Check the intake manifold, vacuum hoses, and gaskets for signs of leaks or damage. Perform a smoke test or use a propane torch to pinpoint the source of any vacuum leaks.
Test Oxygen Sensor:
Use a scan tool or multimeter to test the oxygen sensor’s voltage output and response time. Replace any oxygen sensors that fail to meet specifications.
Check Fuel Delivery System:
Inspect the fuel injectors, fuel pressure regulator, and fuel pump for proper operation and fuel delivery. Perform a fuel pressure test to ensure adequate fuel pressure.
Inspect Exhaust System:
Visually inspect the exhaust system for leaks, cracks, or damage. Repair or replace any components that are leaking or compromised.
Check Engine Mechanical Components:

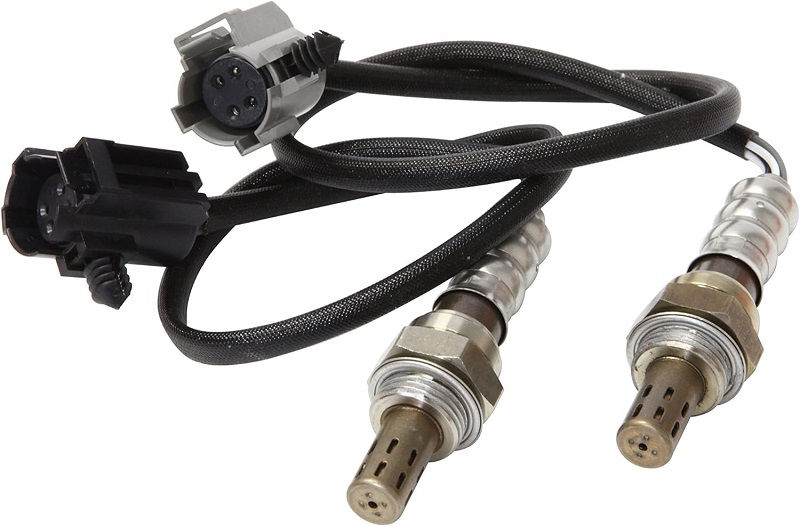

Check out this A27678XUpstream and Downstream Oxygen O2 Sensor 1 and Sensor 2, 234-4076, 234-4078 For Jeep Cherokee Grand Cherokee Wrangler 4.0L
Perform a compression test to assess the condition of the engine’s cylinders and valves. Inspect the EGR valve, mass airflow sensor, and other engine components for proper operation.
Monitor Short-Term Fuel Trim Values:
Use a scan tool to monitor the short-term fuel trim values for Bank 2 while the engine is running. Compare the values to the manufacturer’s specifications and look for any abnormal fluctuations or deviations.
Clear Codes and Perform Test Drive:
After addressing any identified issues, clear any stored trouble codes and perform a test drive to verify that the problem has been resolved. Monitor the short-term fuel trim values during the test drive to ensure they remain within the desired range.
Conclusion:
Short-term fuel trim Bank 2 plays a crucial role in maintaining the proper air-fuel ratio for efficient combustion and engine performance.
Understanding how short-term fuel trim works, its significance in engine operation, and common causes of issues can help vehicle owners diagnose and resolve problems effectively.
By following proper troubleshooting procedures and addressing any underlying issues, vehicle owners can ensure optimal engine performance and fuel efficiency. If unsure about diagnosing or repairing, consider seeking assistance from a qualified automotive technician.
