Deciphering P004A Turbocharger/Supercharger Boost Control “B” Circuit/Open: Causes, Implications, and Resolutions GuideMechanic.Com In the intricate world of automotive engineering, the integration of turbochargers and superchargers has significantly enhanced the performance and efficiency of vehicles.
However, like any sophisticated system, these forced induction systems are susceptible to various malfunctions, one of which is the P004A Turbocharger/Supercharger Boost Control “B” Circuit/Open trouble code.
This article delves into the intricacies of this diagnostic trouble code (DTC), exploring its causes, implications, and potential solutions.
See Also: P0049 Turbocharger/Supercharger Turbine Overspeed
Understanding P004A Turbocharger/Supercharger Boost Control “B” Circuit/Open
P004A is a diagnostic trouble code that signifies an issue with the “B” circuit of the turbocharger or supercharger boost control system.
Turbochargers and superchargers play a crucial role in enhancing engine performance by compressing air and increasing its density before it enters the engine’s combustion chambers.
The “B” circuit is responsible for regulating the boost pressure supplied to the engine, ensuring optimal performance and efficiency. When this circuit experiences an open or malfunction, it triggers the P004A DTC.
Causes of P004A
Several factors can contribute to the occurrence of the P004A trouble code:
Boost Control Solenoid Malfunction:
The boost control solenoid is a vital component responsible for regulating the flow of pressurized air to the engine. A malfunctioning solenoid or its associated wiring can lead to an open circuit condition, triggering the P004A DTC.
Faulty Boost Pressure Sensor:
The boost pressure sensor measures the pressure of the compressed air delivered to the engine. A defective sensor or its wiring can result in inaccurate pressure readings, leading to the activation of the P004A trouble code.
Vacuum Leaks:
Any leaks in the vacuum lines or hoses connected to the boost control system can disrupt the proper functioning of the system, causing a decrease in boost pressure and triggering the P004A DTC.
Electrical Issues:
Wiring harnesses, connectors, or terminals associated with the boost control “B” circuit may experience corrosion, damage, or poor connections, leading to an open circuit condition and the activation of the P004A trouble code.
Software or Calibration Errors:
Incorrect tuning or calibration of the engine management system can result in improper operation of the boost control system, potentially causing the activation of the P004A DTC.
P004A Turbocharger/Supercharger Boost Control “B” Circuit/Open
Implications of P004A

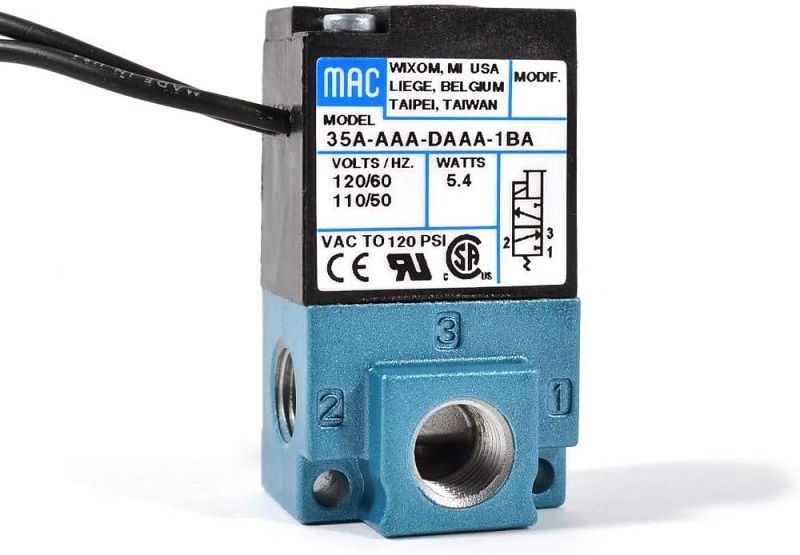

Check out this MAC 35A-AAA-DDBA-1BA BOOST CONTROL 35A 12V-DC 1/8 IN NPT SOLENOID VALVE B238300
The occurrence of the P004A Turbocharger/Supercharger Boost Control “B” Circuit/Open trouble code can have several adverse effects on the vehicle’s performance and operation:
Reduced Engine Performance:
A malfunctioning boost control system can lead to insufficient boost pressure reaching the engine, resulting in decreased power output and compromised performance, especially during acceleration.
Decreased Fuel Efficiency:
Inadequate boost pressure can lead to inefficient combustion, causing the engine to consume more fuel than necessary to achieve the desired performance levels, resulting in decreased fuel efficiency.
Increased Exhaust Emissions:
Inefficient combustion due to low boost pressure can result in higher levels of exhaust emissions, contributing to environmental pollution and potentially causing the vehicle to fail emissions tests.
Potential Engine Damage:
Operating the engine with inadequate boost pressure can put additional stress on internal components, potentially leading to premature wear and damage to critical parts such as pistons, valves, and cylinders.
P004A Turbocharger/Supercharger Boost Control “B” Circuit/Open
Resolutions for P004A
Addressing the P004A Turbocharger/Supercharger Boost Control “B” Circuit/Open trouble code requires a systematic approach to diagnose and rectify the underlying issues:
Diagnostic Scanning:
Utilize a diagnostic scanner or scan tool to retrieve the specific fault codes, including P004A, and gather relevant data such as live sensor readings and freeze frame data to pinpoint the root cause of the open circuit condition.
Visual Inspection:
Conduct a thorough visual inspection of the boost control system, including hoses, connectors, wiring, and associated components, to identify any visible signs of damage, leaks, or abnormalities.
Testing Boost Control Solenoid and Pressure Sensor:
Test the boost control solenoid and pressure sensor for proper operation using a multimeter or specialized diagnostic tools. Replace any faulty components as necessary.
Checking for Vacuum Leaks:

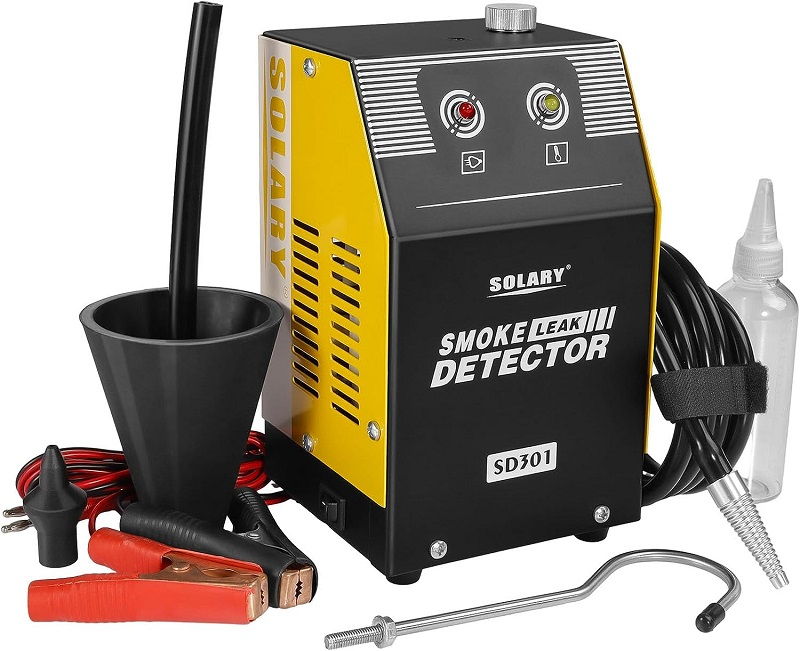

Check out this Solary Automotive Smoke Machine Leak Detector – 12V DC EVAP Vacuum Diagnostic Tester for Pipe System
Perform a smoke test or use a vacuum gauge to detect and locate any leaks in the vacuum lines or hoses connected to the boost control system. Repair or replace damaged or leaking components.
Inspecting Electrical Connections:
Check the wiring harnesses, connectors, and terminals associated with the boost control “B” circuit for corrosion, damage, or poor connections. Repair or replace any faulty wiring or connectors.
Software Calibration:
If applicable, recalibrate or reflash the engine control unit (ECU) with updated software or tuning parameters to ensure proper operation of the boost control system within the prescribed limits.
Road Test and Reassessment:
After performing the necessary repairs or replacements, conduct a road test to verify proper operation and monitor for the recurrence of the P004A Turbocharger/Supercharger Boost Control “B” Circuit/Open trouble code. Reassess the system to ensure all issues have been effectively addressed.
Conclusion
See Also: P0048 Turbocharger/Supercharger Boost Control “A” Circuit High
The P004A Turbocharger/Supercharger Boost Control “B” Circuit/Open trouble code poses a challenge for vehicle owners and technicians, necessitating thorough diagnostics and appropriate remedial actions to restore proper operation and performance.
By understanding the causes, implications, and resolutions associated with this diagnostic trouble code, automotive professionals can effectively troubleshoot and rectify issues with the turbocharger or supercharger boost control system, ensuring optimal performance, efficiency, and reliability of vehicles on the road.
