Demystifying P004E Turbocharger/Supercharger Boost Control “A” Circuit Intermittent/Erratic GuideMechanic.Com In the intricate landscape of automotive diagnostics, few challenges rival the enigma of deciphering cryptic error codes. Among these codes, P004E stands out as a common yet perplexing hurdle for both car owners and mechanics alike.
Designated as Turbocharger/Supercharger Boost Control “A” Circuit Intermittent/Erratic, P004E signifies an irregularity in the electrical circuit responsible for regulating boost pressure within a vehicle’s forced induction system.
Unraveling the complexities behind P004E requires a deep dive into the intricacies of turbocharger and supercharger systems, coupled with a methodical approach to diagnosing and resolving the underlying issues.
See Also: P004C Turbocharger/Supercharger Boost Control “B” Circuit Low
P004E Turbocharger/Supercharger Boost Control “A” Circuit Intermittent/Erratic

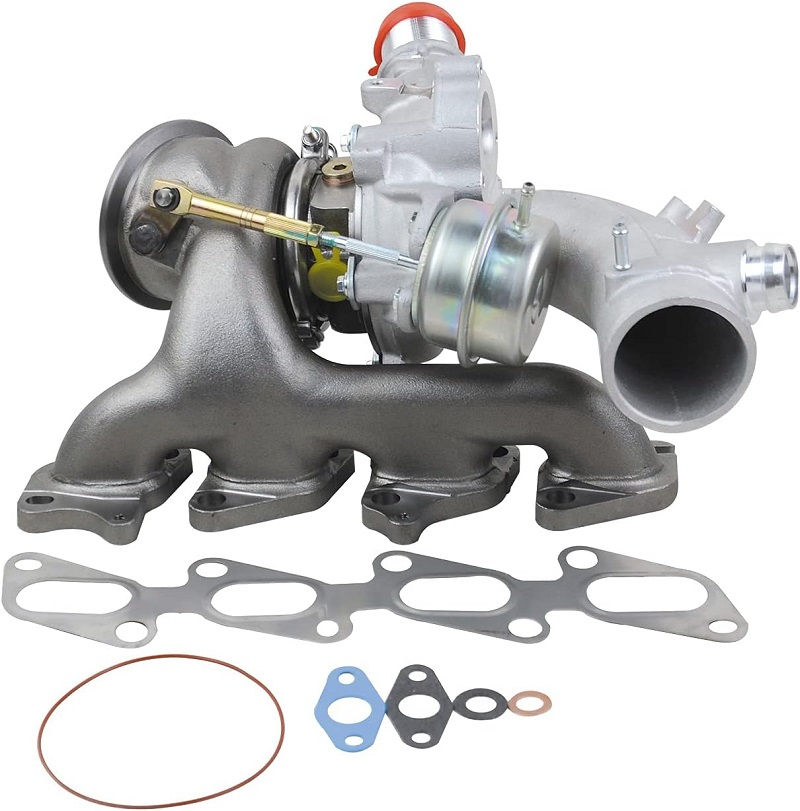

Understanding Turbocharger and Supercharger Boost Control
Before delving into the nuances of P004E, it’s crucial to grasp the fundamental principles underpinning turbocharger and supercharger systems.
These systems belong to a category known as forced induction, designed to enhance engine performance by compressing air and delivering it to the combustion chamber.
Turbochargers harness exhaust gases to spin a turbine, which in turn drives a compressor. This compressor pressurizes incoming air before it enters the engine, effectively increasing the engine’s power output. Similarly, superchargers achieve this by utilizing a belt-driven compressor to force air into the engine.
Boost control plays a pivotal role in optimizing engine performance by regulating the amount of pressurized air delivered to the engine.
The engine control module (ECM) utilizes various sensors to monitor parameters such as engine load, throttle position, and airflow, adjusting boost pressure accordingly to meet performance demands.
P004E Turbocharger/Supercharger Boost Control “A” Circuit Intermittent/Erratic
Deciphering P004E: What Does It Signify?
P004E, Turbocharger/Supercharger Boost Control “A” Circuit Intermittent/Erratic, indicates an inconsistency or irregularity in the Boost Control “A” circuit.
This code is triggered when the ECM detects fluctuations or abnormalities in the electrical signals governing boost pressure regulation. Such fluctuations can result from a variety of underlying issues within the boost control system.
P004E Turbocharger/Supercharger Boost Control “A” Circuit Intermittent/Erratic
Common Causes of P004E
Diagnosing and resolving P004E requires a systematic approach to identify potential culprits lurking within the Boost Control “A” circuit. Some common causes include:
Faulty Boost Control Solenoid:
The Boost Control Solenoid is responsible for regulating boost pressure by controlling the flow of pressurized air. A malfunctioning solenoid can lead to erratic boost control, triggering the P004E code.
Intermittent Wiring Issues:
Frayed, corroded, or loose wiring within the Boost Control “A” circuit can intermittently disrupt the flow of electrical signals, resulting in erratic boost control and triggering the P004E code.
Poor Electrical Connections:
Loose or corroded electrical connectors can introduce resistance into the circuit, leading to intermittent electrical signals and triggering the P004E code.
Sensor Malfunction:
Issues with sensors such as the manifold absolute pressure (MAP) sensor or the boost pressure sensor can lead to inaccurate readings, causing erratic boost control and triggering the P004E code.
Intermittent ECM Failure:
While less common, intermittent failures within the ECM can result in erratic control signals being sent to the boost control system, triggering the P004E code.
P004E Turbocharger/Supercharger Boost Control “A” Circuit Intermittent/Erratic
Diagnosing and Resolving P004E
Effectively diagnosing and resolving P004E requires a methodical approach and a keen understanding of automotive diagnostics. Here’s a step-by-step guide to tackling this elusive DTC:

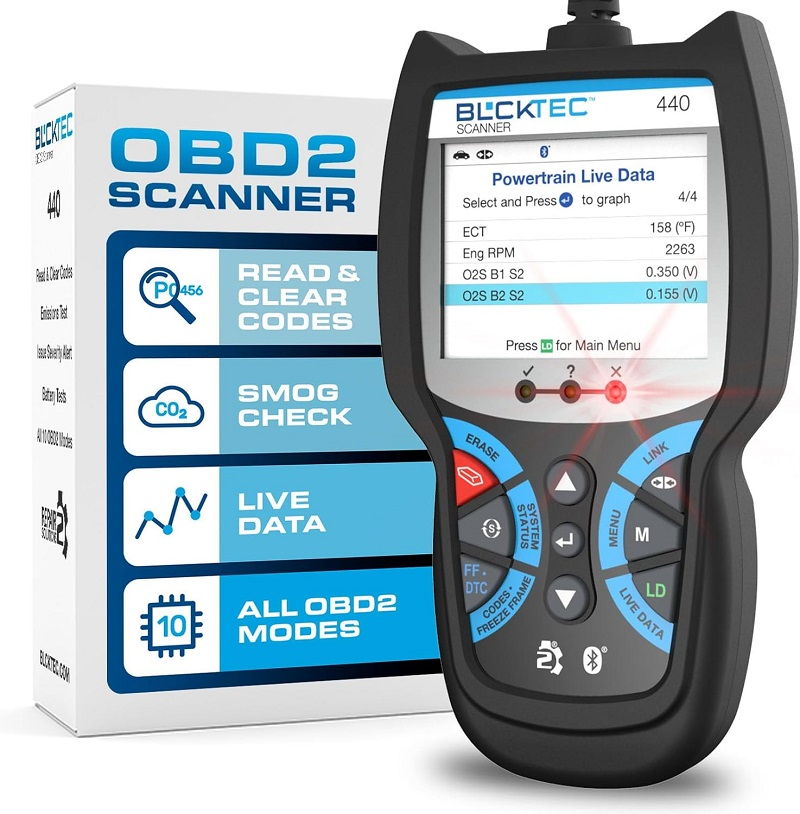

Scan for Additional Codes:
Conduct a comprehensive diagnostic scan to check for any additional codes that may provide insights into related issues affecting the Boost Control “A” circuit.
Inspect Boost Control Solenoid:
Verify the functionality of the Boost Control Solenoid by visually inspecting it for signs of damage or corrosion. Bench-test the solenoid to ensure proper operation.
Check Wiring and Connectors:
Thoroughly inspect the wiring harness and connectors associated with the Boost Control “A” circuit. Look for signs of wear, damage, or poor connections, and repair or replace compromised components as necessary.
Test Electrical Signals:
Utilize a multimeter to measure voltage and continuity along the Boost Control “A” circuit, verifying that electrical signals are stable and within the specified parameters outlined in the vehicle’s service manual.
Verify Sensor Functionality:
Test the functionality of sensors such as the MAP sensor and boost pressure sensor to ensure accurate readings. Replace any malfunctioning sensors as needed.
ECM Evaluation:
Consider the possibility of an intermittent ECM failure contributing to the P004E code. Conduct a comprehensive diagnostic evaluation of the ECM to rule out any underlying issues affecting its operation.
Clear Codes and Test Drive:
Once the root cause of the P004E code has been identified and addressed, clear the DTC from the ECM’s memory using a diagnostic scan tool. Test drive the vehicle to ensure that the issue has been successfully resolved and that no further codes are present.
Conclusion
See Also: P004D Turbocharger/Supercharger Boost Control “B” Circuit High
Navigating the complexities of P004E Turbocharger/Supercharger Boost Control “A” Circuit Intermittent/Erratic requires a blend of expertise, patience, and meticulous attention to detail.
By understanding the underlying principles of turbocharger and supercharger systems and systematically diagnosing potential causes, mechanics can effectively address the issues triggering this elusive DTC.
Whether it’s a faulty boost control solenoid, intermittent wiring issues, or sensor malfunctions, resolving P004E necessitates a comprehensive understanding of the vehicle’s systems and a commitment to thorough troubleshooting.
With the right tools, knowledge, and expertise, conquering this diagnostic challenge becomes an achievable endeavor, restoring both performance and reliability to vehicles worldwide.
