P0056 Code HO2S Heater Control Circuit (Bank 2 Sensor 2): Understanding the Code and Resolving Issues GuideMechanic.Com In the complex world of automotive diagnostics, understanding trouble codes is essential for identifying and resolving issues within a vehicle’s various systems.
Among these codes, P0056 is particularly significant as it pertains to the heater control circuit of the heated oxygen sensor (HO2S) in Bank 2, Sensor 2. In this detailed article, we will explore the meaning of the P0056 code, its potential causes, symptoms, diagnostic procedures, and possible solutions.
See Also: P0054 Code HO2S Heater Resistance (Bank 1, Sensor 2)
Understanding P0056 Code:
The P0056 code is a diagnostic trouble code (DTC) that indicates a detected issue with the heater control circuit of the HO2S, specifically in Bank 2, Sensor 2.
Within the intricate network of engine management, the vehicle’s engine control module (ECM) monitors the operation of the HO2S to ensure optimal combustion efficiency and emission control.
The heater element within the oxygen sensor is crucial for maintaining the sensor’s operating temperature, allowing it to provide accurate readings to the ECM.
Causes of P0056:
Several factors can contribute to the activation of the P0056 code, including:
Faulty Oxygen Sensor Heater:
A common cause of this code is a malfunctioning heater within the oxygen sensor itself. Over time, the heater element may deteriorate due to age, exposure to extreme temperatures, or electrical faults, resulting in an open or short circuit.
Wiring Issues:
Damaged, corroded, or disconnected wiring and connectors associated with the HO2S heater control circuit can prevent the heater from functioning properly, leading to the activation of the P0056 code.
ECM Malfunction:
In rare cases, a malfunctioning engine control module (ECM) may erroneously detect a problem with the HO2S heater control circuit, causing the code to be set.
P0056 Code HO2S Heater Control Circuit (Bank 2 Sensor 2)
Symptoms of Code:
When the P0056 code is present, drivers may experience the following symptoms:
Check Engine Light:
The most noticeable symptom is the illumination of the check engine light on the vehicle’s dashboard, indicating a potential issue with the HO2S heater control circuit.
Reduced Fuel Efficiency:
A malfunctioning oxygen sensor heater can affect the sensor’s ability to provide accurate readings to the ECM, potentially leading to reduced fuel efficiency.
Elevated Emissions:
An impaired HO2S heater control circuit may result in improper fuel-air mixture control, leading to increased emissions of harmful pollutants from the vehicle’s exhaust system.
Diagnosis and Repair:
Diagnosing and repairing the P0056 code typically involves the following steps:
Scan for DTCs:

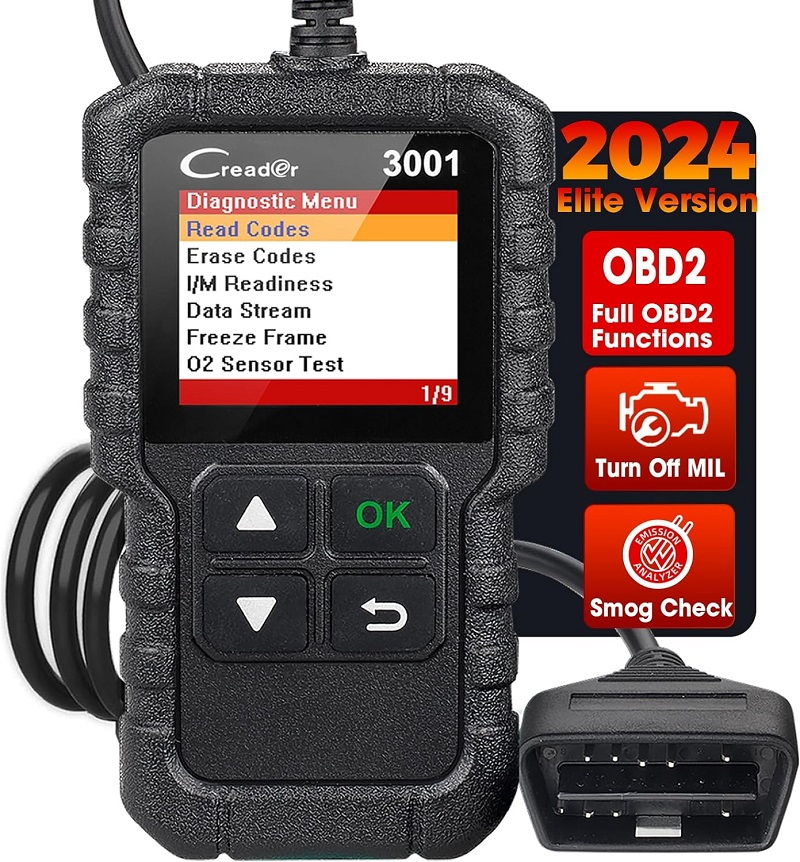

Begin by using an OBD-II scanner to retrieve the stored trouble codes from the vehicle’s ECM, including the P0056 code.
Inspect Wiring and Connectors:
Thoroughly examine the wiring harness and connectors associated with the Bank 2, Sensor 2 oxygen sensor heater control circuit for any signs of damage, corrosion, or disconnection. Repair or replace any damaged components as necessary.
Test Heater Control Circuit:
Use a multimeter to test the resistance and continuity of the HO2S heater control circuit. Verify that the circuit is functioning within the manufacturer’s specified parameters. If not, further investigation is required.
Check Oxygen Sensor:

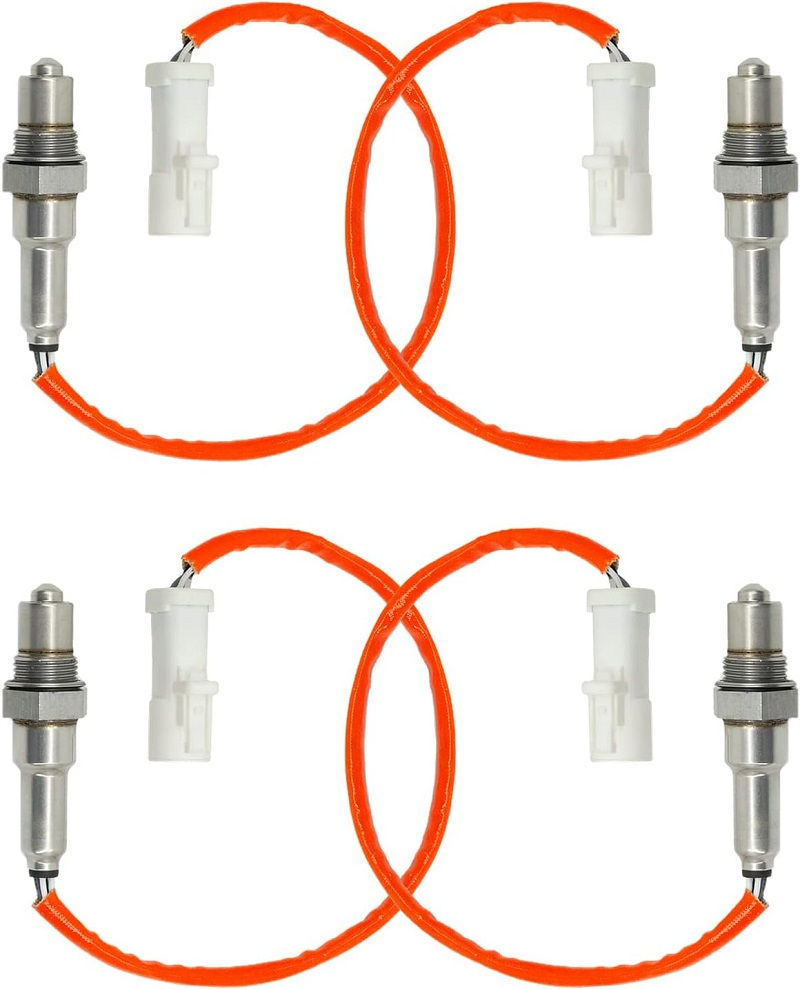

Inspect the Bank 2, Sensor 2 oxygen sensor for any signs of physical damage or contamination. If the sensor appears to be faulty, it may need to be replaced.
Verify ECM Functionality:
If all other potential causes have been ruled out, consider testing the functionality of the ECM using specialized diagnostic equipment. Replace the ECM if it is determined to be faulty.
Clear DTCs and Test Drive:
After completing repairs, clear the stored trouble codes from the ECM’s memory using the OBD-II scanner. Take the vehicle for a test drive to ensure that the issue has been resolved and that the P0056 code does not return.
Conclusion:
See Also: P0055 Code HO2S Heater Resistance (Bank 1, Sensor 3)
The P0056 code related to the HO2S heater control circuit in Bank 2, Sensor 2 is a critical indicator of potential issues with the vehicle’s oxygen sensor and associated circuits.
Prompt diagnosis and repair are essential for maintaining optimal engine performance, fuel efficiency, and emission control.
By understanding the significance of the P0056 code and following proper diagnostic procedures, automotive technicians can effectively identify and resolve issues with the HO2S heater control circuit, ensuring the proper operation of the vehicle’s engine management system.
