Demystifying P0060 Code: Understanding HO2S Heater Resistance (Bank 2, Sensor 2) GuideMechanic.Com In the intricate world of automotive diagnostics, where each illuminated “Check Engine” light holds a story of potential issues, the P0060 code emerges as a significant indicator of concern.
Specifically, this diagnostic trouble code (DTC) points to an anomaly in the Heater Resistance of the Oxygen Sensor (HO2S) in Bank 2, Sensor 2. Let’s embark on a journey to unravel the complexities behind P0060, understanding its implications, potential causes, and strategies for effective resolution.
See Also: P0051 HO2S Heater Control Circuit Low (Bank 2 Sensor 1)
Understanding P0060 Code
P0060 is a diagnostic trouble code that indicates an issue with the Heater Resistance of the Oxygen Sensor (HO2S) in Bank 2, Sensor 2.
In automotive terminology, “Bank 2” typically refers to the side of the engine that does not contain cylinder 1 in configurations such as V6 or V8 engines.

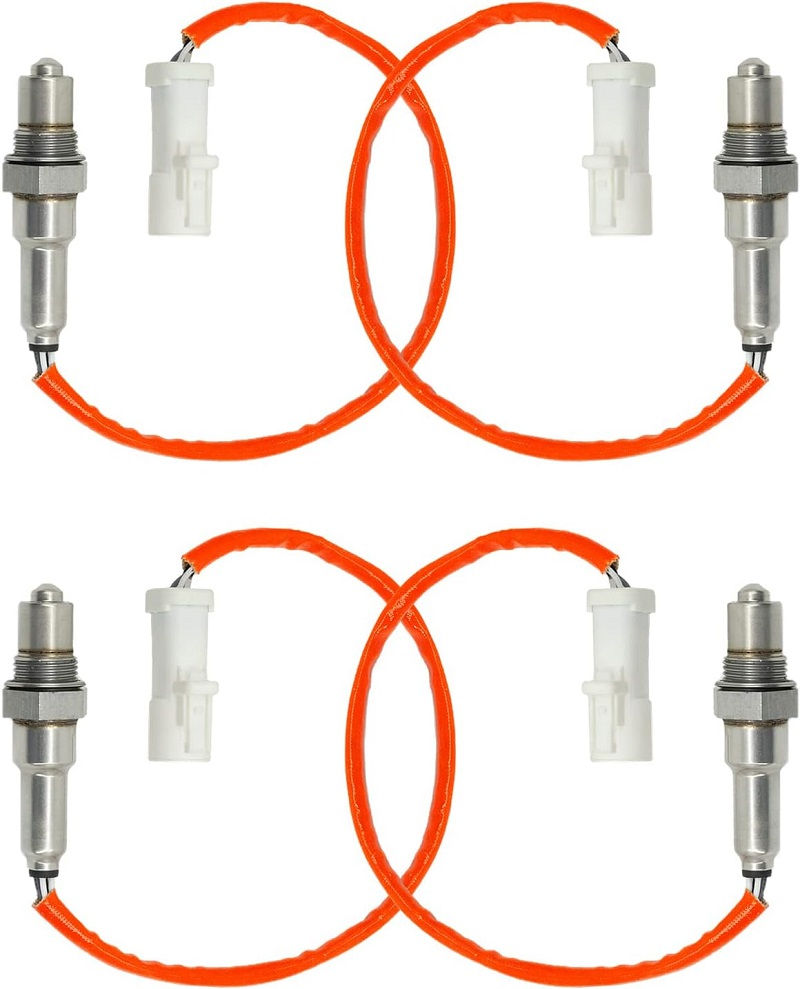

The HO2S is responsible for measuring the oxygen content in the exhaust gases and providing feedback to the engine control module (ECM) to adjust the air-fuel mixture for optimal combustion.
The heater element within the HO2S ensures quick activation and accurate readings, particularly during cold start conditions.
Delving into HO2S Heater Resistance
Before delving deeper into P0060, it’s essential to comprehend the role of the HO2S heater and its resistance in the vehicle’s operation.
The heater element within the HO2S is crucial for bringing the sensor to operating temperature quickly, enabling it to accurately measure oxygen levels in the exhaust gases.
The resistance of the heater element is a key parameter that determines its ability to generate heat efficiently. Any deviation from the expected resistance values can lead to improper sensor operation and trigger the P0060 code.
Common Causes of P0060 Code
Several factors can contribute to the occurrence of the P0060 code, indicating an issue with HO2S Heater Resistance in Bank 2, Sensor 2:
- Faulty Oxygen Sensor: A defective oxygen sensor with a malfunctioning heater element can result in improper resistance readings, triggering the P0060 code.
- Wiring or Connector Issues: Damage, corrosion, or disconnection in the wiring harness or connectors associated with the oxygen sensor heater circuit can disrupt electrical continuity, leading to heater resistance issues and the appearance of the P0060 code.
- Blown Fuse: A blown fuse in the electrical circuit supplying power to the oxygen sensor heater can prevent the heater element from functioning correctly, resulting in heater resistance problems and the onset of the P0060 code.
- Faulty Engine Control Module (ECM): In rare cases, a malfunctioning engine control module (ECM) may fail to provide the proper voltage to the oxygen sensor heater circuit, leading to heater resistance issues and the appearance of the P0060 code.
Diagnosing P0060
Diagnosing a P0060 code typically involves a systematic approach to pinpointing the underlying issue:
Code Retrieval:

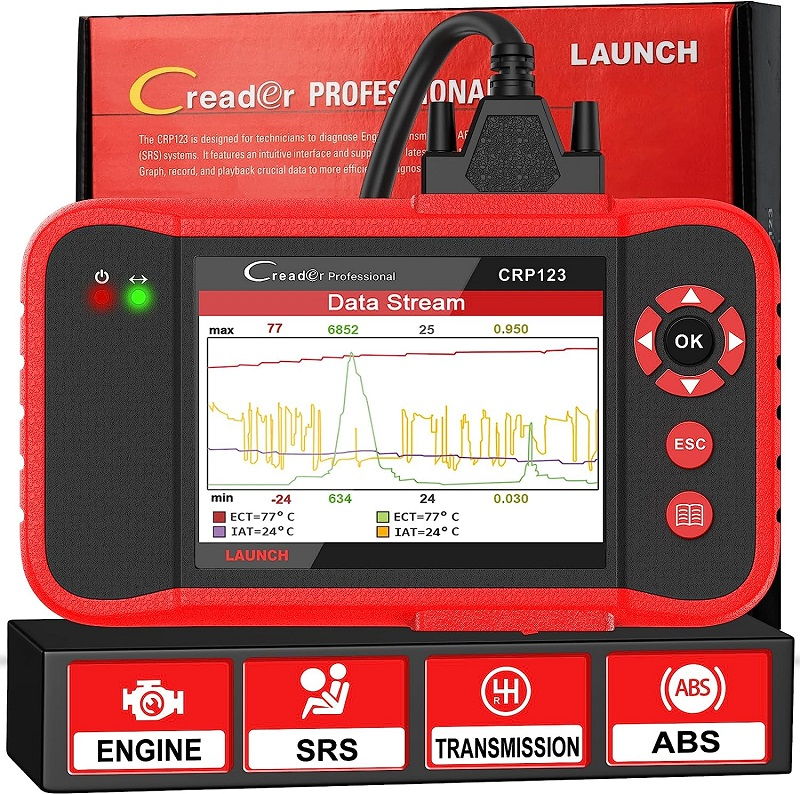

Utilize an OBD-II scanner to retrieve the stored trouble code and any accompanying freeze frame data, providing insights into the conditions present when the code was set.
Visual Inspection:
Conduct a thorough visual inspection of the engine bay, checking for any obvious signs of damage, corrosion, or disconnection in the wiring harness or connectors associated with the oxygen sensor heater circuit.
Oxygen Sensor Testing:
Test the oxygen sensor’s heater element using a multimeter to measure its resistance and compare it against the manufacturer’s specified values.
Wiring and Connector Testing:
Conduct continuity tests on the wiring harness and connectors associated with the oxygen sensor heater circuit, checking for any breaks or inconsistencies.
Fuse Inspection:
Check the condition of the fuse(s) in the electrical circuit supplying power to the oxygen sensor heater, replacing any blown fuse(s) with a new fuse of the appropriate rating.

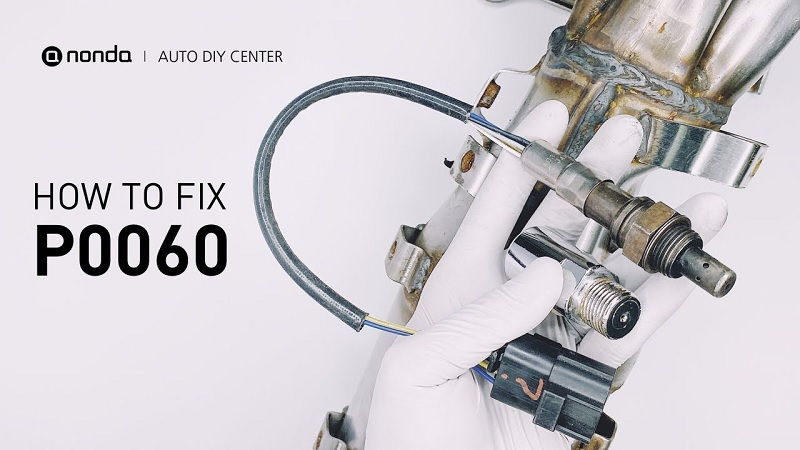

Addressing P0060
Once the root cause of the P0060 code has been identified, appropriate measures can be undertaken for resolution:
- Oxygen Sensor Replacement: If the oxygen sensor is found to be faulty, replace it with a new, high-quality sensor compatible with the vehicle’s make and model.
- Wiring or Connector Repair: Rectify any damage, corrosion, or disconnection in the wiring harness or connectors associated with the oxygen sensor heater circuit, ensuring proper electrical continuity.
- Fuse Replacement: If a blown fuse is identified as the cause of the issue, replace it with a new fuse of the appropriate rating to restore proper electrical function.
- ECM Diagnosis and Repair: If all other potential causes have been ruled out, consider diagnosing and repairing any faults within the engine control module (ECM) that may be contributing to the problem.
Conclusion
See Also: P0050 HO2S Heater Control Circuit (Bank 2 Sensor 1)
In conclusion, P0060 serves as a diagnostic indicator of an anomaly in the Heater Resistance of the Oxygen Sensor (HO2S) in Bank 2, Sensor 2. Understanding the functionality of the HO2S heater, potential causes of the code, and the diagnostic process is crucial for effective troubleshooting and resolution.
By adhering to a systematic approach and promptly addressing the identified issues, motorists and technicians alike can navigate through P0060 with confidence, restoring optimal engine performance and efficiency.
