Deciphering P0066 Code: Understanding Air Assisted Injector Control Circuit Low GuideMechanic.Com Within the intricate web of a modern vehicle’s engine management system, precise control over fuel delivery is paramount for optimal performance and emission control.
Among the key components involved in this process is the air assisted injector (AAI), which supplements primary fuel injection by injecting fuel into the combustion chamber.
However, when issues arise with the control circuit of the AAI, it can lead to various engine problems and decreased efficiency.
This article delves into the specifics of the P0066 error code, focusing on the Air Assisted Injector Control Circuit or Circuit Low, its causes, and potential resolutions.
See Also: P0064 Code: HO2S Heater Control Circuit High (Bank 2 Sensor 3)
Understanding P0066 Error Code:
P0066 is a diagnostic trouble code (DTC) that indicates a problem with the control circuit of the air assisted injector or a circuit low condition. The AAI is responsible for injecting fuel into the combustion chamber, aiding in fuel atomization and combustion efficiency.
When the engine control module (ECM) detects that the control circuit voltage of the AAI is below the specified threshold, it triggers the P0066 error code.
This code typically signifies an issue with the electrical circuitry associated with the AAI, resulting in a low voltage condition. This can lead to improper fuel delivery, affecting engine performance and emissions.
Potential Causes of Error Code:
Several factors can contribute to the triggering of the P0066 error code. Some of the common causes include:
Faulty Air Assisted Injector:
Over time, air assisted injectors can degrade or malfunction due to deposits from fuel additives or contaminants in the fuel system. A defective injector may not operate correctly, leading to insufficient fuel delivery and a low voltage condition in the control circuit.
Wiring Issues:
Damage to the wiring harness or connectors associated with the air assisted injector control circuit can disrupt the flow of electrical current, resulting in a low voltage condition. Frayed wires, corrosion, or loose connections can all contribute to this problem.
Blown Fuse:
A blown fuse in the air assisted injector control circuit can also cause a low voltage condition and trigger the P0066 error code. Fuses can blow due to electrical faults or excessive current draw.
ECM Failure:
In rare cases, a malfunctioning engine control module (ECM) may fail to send the proper signals to the air assisted injector control circuit, resulting in a low voltage condition and the P0066 error code.

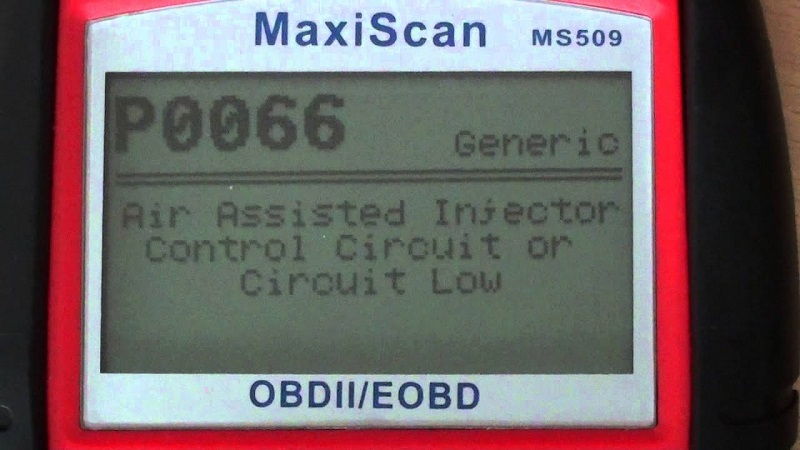

P0066 Code: Air Assisted Injector Control Circuit or Circuit Low
Diagnosing and Resolving Error Code:
Diagnosing the underlying cause of the P0066 error code typically requires a systematic approach and specialized diagnostic tools. Here are the steps that technicians may take to address this issue:
Visual Inspection:
The first step is to visually inspect the air assisted injector and its associated wiring for any signs of damage, corrosion, or loose connections. Any issues found during this inspection should be addressed promptly.
Check Injector Operation:
Technicians can perform tests to verify the operation of the air assisted injector, including checking fuel pressure and flow rate. Any deviations from the manufacturer’s specifications may indicate a faulty injector that needs to be replaced.
Test Wiring and Connections:
Using a digital multimeter, technicians can test the continuity of the wiring harness and connectors associated with the air assisted injector control circuit. Any interruptions in the circuit should be repaired to ensure proper electrical signal transmission.
Inspect Fuse:
Technicians should check the fuse associated with the air assisted injector control circuit to ensure that it is not blown. If the fuse is blown, it should be replaced with a new one of the correct amperage rating.
Test ECM Functionality:
In cases where other potential causes have been ruled out, technicians may need to test the functionality of the engine control module (ECM) to ensure that it is sending the correct signals to the air assisted injector control circuit.
Conclusion:
The P0066 error code relating to Air Assisted Injector Control Circuit or Circuit Low indicates a problem with the control circuit of the air assisted injector, resulting in a low voltage condition.
This issue can lead to improper fuel delivery, affecting engine performance and emissions. Prompt diagnosis and repair are essential to ensure the proper functioning of the air assisted injector and maintain optimal engine performance.
By following a systematic diagnostic process and addressing any underlying issues, technicians can effectively resolve the P0066 error code and restore the vehicle’s performance and efficiency.
